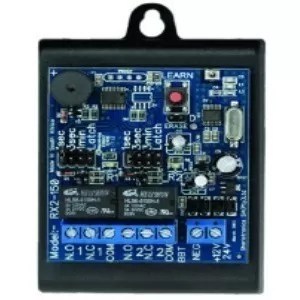

These Sherlo Receivers have a 150 meter range and are equipped with Code-Hopping Encryption technology. By using the tactile on-board ‘LEARN’ switch, different remotes / transmitters can be paired to the receiver.
Relay modes include Latching and Momentary (1 & 3 seconds, 1 & 3 minutes relay closure times.)
APPLICATIONS:
- Gate & Garage Door Access Control.
- Panic Activations.
- Arming Disarming Alarm systems.
- Switching On Off lights.
- Switching On Off Generators.
FEATURES:
- Code-Hopping Encryption
- Latch or Momentary
- Selectable Momentary times: 1 Sec; 3Sec; 1min; 3min. Buzzer confirmation tone.
- Crystal Controlled – 100KHz
SPECIFICATIONS:
- Encryption Code-Hopping.
- Range 150m (Open air).
- Frequency: 403MHz or 433 MHz
- Memory Capacity
- RX1-150: 80 Remotes
- RX2-150: 40 Remotes
- RX3-150: 32 Remotes.
- Voltage Range: 9.8V to 26V AC or DC
- Current draw: 15mA.
- Operating Temp -5°C to 60°C.
